Tank batching process weighing control system

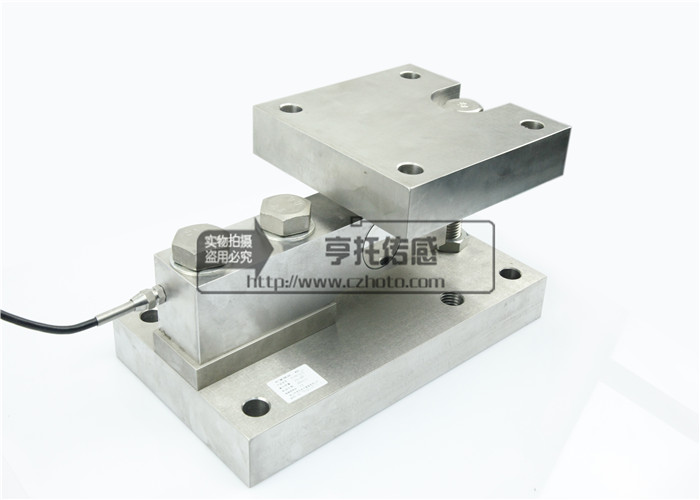

For non-professional users, it is very difficult for non-professional users to directly use the weighing sensor. During installation, various issues must be considered. Guangzhou Nanchuang China "Weighing Control System" industry leader and weighing system^! China's top ten suppliers of imported sensors, instrumentation, and industrial spare parts; the tank batching process weighing control system is a new type of weighing component, which combines weighing sensors, load transfer devices and installation connectors. It can be easily connected with mechanical devices of various shapes to form a weighing system. It is very convenient to connect with various shapes of mechanical devices to form a weighing system, such as connecting raceways, platforms, vertical tanks, tanks, hoppers, reactors, etc.

The functional characteristics of the weighing control system of the tank batching process:

1. Digital weight display;

2. High-precision, high-safety load cell with good stability when installed with modules;

3. It can be applied to the inventory control management of liquid, powder and other raw materials;

4. According to the actual on-site status, use 3 or 4 groups of sensors;

5. Cooperate with the purchase of quantitative control system to achieve quantitative automatic feeding or quantitative automatic discharge;

6. There are general non-explosion-proof and explosion-proof specifications for purchase;

7. The weight signal of the weighing module installed on the floor of the tank is transmitted to the junction box. In the junction box, the angle difference can be adjusted according to the load conditions of various weighing modules, and the collected weight signal is sent to the weighing terminal or weight transmitter. The weighing terminal or weight signal is processed into corresponding weight data.

8. The module adopts a combination of floating type and semi-floating type. The weighing system formed by using sensors can automatically measure weighing data, store the computer and perform weighing data management.

9. The system has automatic, automatic and manual functions. No matter in which way, there is a mandatory function. This function can immediately start or stop certain operations to cope with emergencies and make the system more resilient. 10. Fully automatic: automatic mode with computer monitoring and all data functions. (Optional) When the weighing control system of the tank batching process is in the automatic mode (including automatic), after receiving the instruction to request the batching, the alarm will ring to notify the on-site personnel to pay attention, and then start the feeding pump equipment in order, and the system will connect To stop the batching instruction, the system will stop after discharging the thick material in the weighing tank.

The range controlled by the weighing control system of the tank batching process: conveying, weighing, and discharging.

1. The weighing control system of the tank batching process will start from the feed pump of the raw materials until the compliant materials are delivered to the tank. This will include the control and interlocking of all conveying and discharging valves, the start and stop of each conveying pump, the control of fast and slow feeding, status detection, and all data processing functions.

2. The weighing control system of tank batching process is composed of weighing unit, data processing unit and logic control unit. They work independently of each other and are closely linked by question and answer. Flexible and mobile, while increasing the degree of system automation, it also improves the reliability of the system. In order to ensure the long-term fault operation of users.
